NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Thu Jan 07, 2016 8:33 pm
by joesalinas
Hi, I'll already connect the latest software with the latest version of the MAonPc but the MA software doesn't recognize the inputs, I move the faders of the midi control (nanoKontrol 2) and it doesn't recognize the midi inputs, what I'm doing wrong??
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 11:20 am
by bernd
Does BOMAC not react on the movement or GMA ?
If you are talking about GMA you don't need midi inside the GMA - bomac sends Art-Net to it and you need only remote dmx.
Are you using gma2 version 3.1 or higher?
Yes, then check this post first, please:
viewtopic.php?f=2&t=71
Is the network configured correctly?
- did you assigned Art-Net IP to a adapter
- is that adapter connected (cable)
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 2:41 pm
by joesalinas
I'm using the MAonPc 3.1, the BOMAC recognize the midi inputs and recognize the session of the MA.
The MA doesn't recognize the artnet inputs
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 3:05 pm
by bernd
I this case follow the linked instructions in that prev. post.
MA broke in >=3.1 their Art-Net implementation.
In short:
Assign two art-net IPs to your network adapter.
Use the smaller ip in bomac "special" tab.
You can also use GMA2 before version 3.1, but who links using old stuff.
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 3:35 pm
by joesalinas
I've done the two ip's assignation and the BOMAC recognize the artnet session.
BOMAC recognize the net session but the MA Doesn't recognize the artnet inputs
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 5:30 pm
by bernd

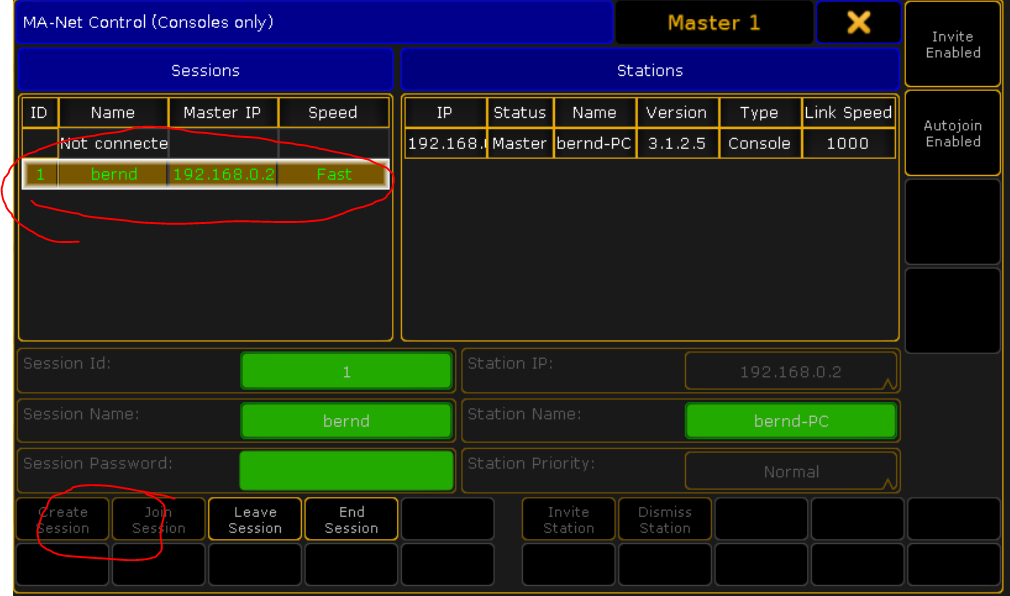

Did you start a session in GMA? this is required.
- Network.PNG (85.3 KiB) Viewed 189490 times

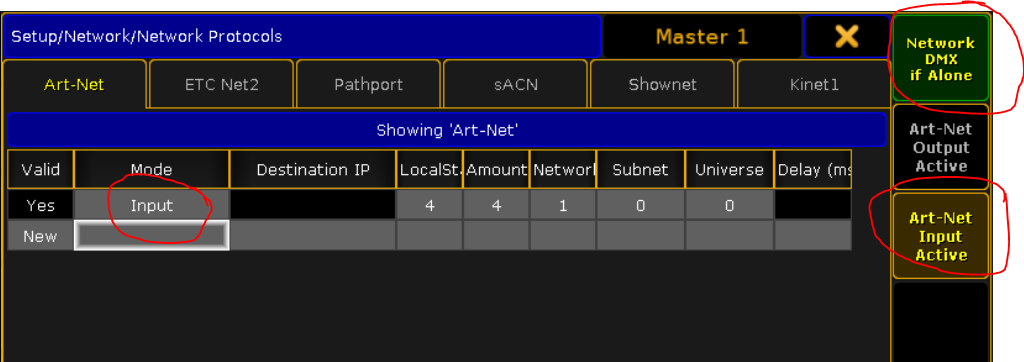

Did you enable art-net and did you enabled art-net input?
Have you created an Art-Net universe input in GMA?
- ArtNet.PNG (58.4 KiB) Viewed 189490 times
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Fri Jan 08, 2016 8:37 pm
by joesalinas
Yes I've done that like I said the BOMAC recognize the MA session
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Sat Jan 09, 2016 12:47 am
by bernd
Which Art-Net IP's are you using?
Which IP you have entered in "special"-tab in bomac under "Art-Net local IP"?
Can you append your project file, please.
Are you using an other Art-Net Network than 1?
GMA2 v3.1 has a other bug, which does not transfer the network. only subnet and universe are transferred when a Art-Net Reply is send from console.
Messed up with the universes?
Localstart is the GMA universe.
According to my screenshot my Art-Net universe 1:0:0 arrives at GMA universe 4.
Have you checked the values in the DMX sheet?
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Tue Jan 12, 2016 4:33 am
by joesalinas
Sorry for the late answer,
here a picture of my Art-Net ip
Re: NanoKontrol 2 Why doesn't recognize the midi input?
Posted: Tue Jan 12, 2016 4:43 am
by joesalinas
local start 1
Amount 1
Network 1
Subnet 0
Universe 4
Did check the DMX WINDOW don't show anything moving
