No dmx output in Ma2

Post Reply
vjmvbs
Posts: 5
Joined: Sun Nov 13, 2016 11:45 pm

No dmx output in Ma2

Post by vjmvbs »

Hi,

I am playing with your software but i can not get it right. :twisted:
I have a PC with windows 7 GrandMa2 Software 3.2.2.13.

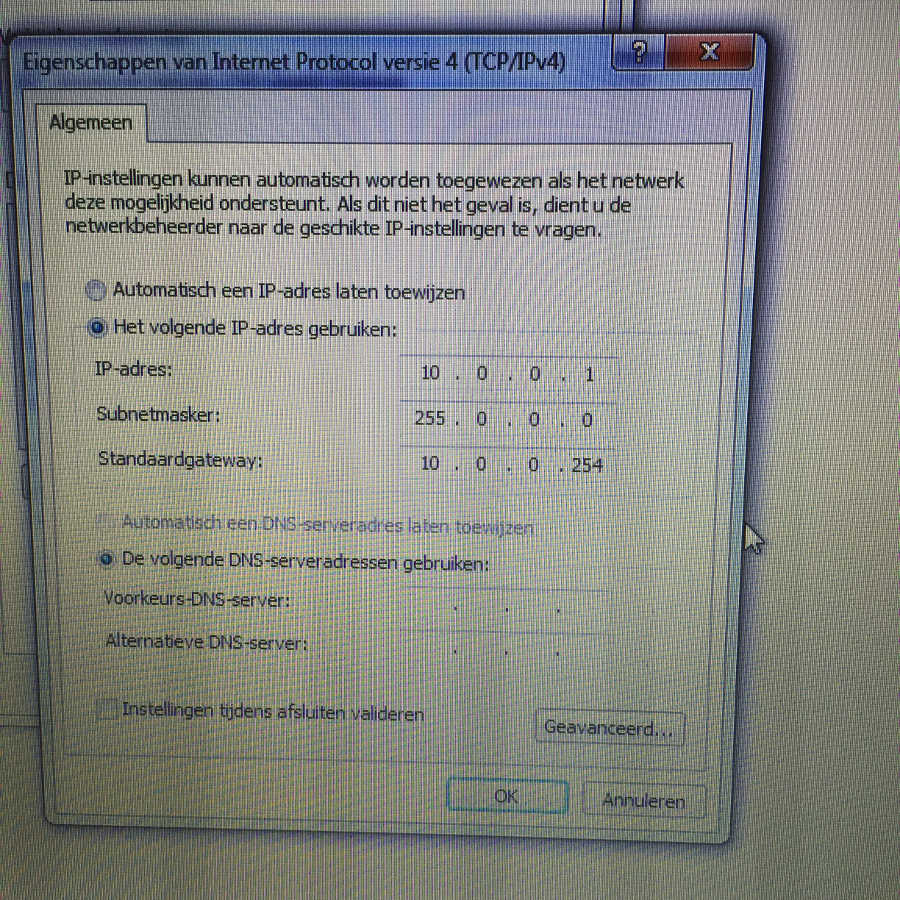

I have a Artnet setup with 10.0.0.1 subnet 255.0.0.0 gateway 10.0.0.254.
I only run the Ma2 software on my laptop and don't have a console or something connected.
I start the session in Ma2 and see the session in Your software, i can choose the Midi and have the learn on for 14 channels, turn of the learn and go and see if i get the dmx control in Ma2.
This is not happening, it seems i have setup everything right ( i am playing with it for 2 day's) so i hope i don't make a mistake somewhere. :lol: :lol:
I added som pictures of my settings.
Maybe you could have a look what is my problem.

Recards Vincent
Attachments
bernd
Site Admin
Posts: 131
Joined: Tue Oct 22, 2013 9:54 am

Re: No dmx output in Ma2

Post by bernd »

Did you see this post?
viewtopic.php?f=2&t=71

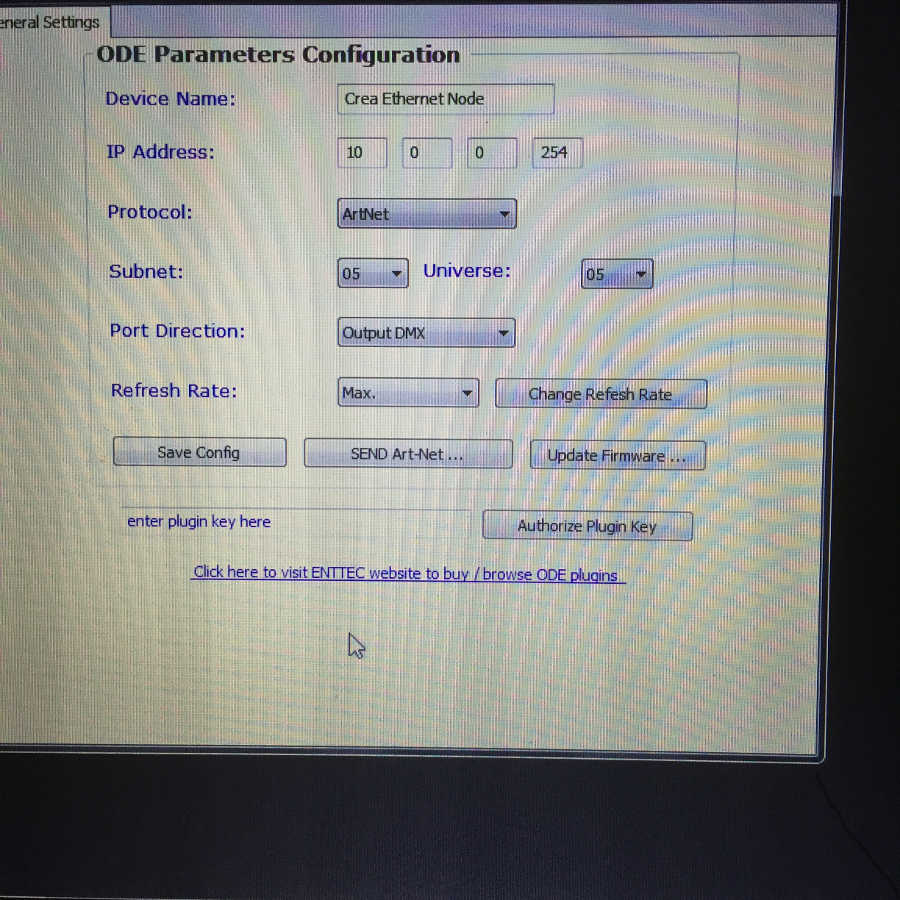

In your case: use a different second address but NOT 10.0.0.254, because your ODE is running there.
Setting the ODE address as network gate way is wrong! A ode is NOT network router!

Give your network adapter two IPs:
10.0.0.1
10.0.0.253

Go to BOMAC project settings:
Setup target IP to 10.0.0.1

Switch to "Special"-Tab and set local IP to 10.0.0.253.

Don't forget Grandma start universe counting with 1 and not like the standard with 0!

Art-Net:
Network: 0
Subnet: 0
Universe: 4

will get into the Grandma2 as 0:0:5 !

No related to BOMAC:
You wrote that there is no dmx output. To use GrandMA2 YOU NEED to connect hardware from MA Lighting to get an output.
INPUT works without MA hardware.
vjmvbs
Posts: 5
Joined: Sun Nov 13, 2016 11:45 pm

Re: No dmx output in Ma2

Post by vjmvbs »

Hi Bernd,

Oké i got it working this time, a little confusing in the beginning but i get it.

Works nice your software, what i like to do is controlling the wheels, dimmer wheel and pan an tilt if i select a dimmer or Fixture.
I use a Beringer BCF2000 Midi controller and like to use the encoder wheels on top 1>8 for that.
I try a lot off different cmd inputs like; SetVar $myencoder1 - "Dim" or Atribute "dim" + $Encoder but notting seems to work.
Do you have any experience with this?

Best Regards Vincent
bernd
Site Admin
Posts: 131
Joined: Tue Oct 22, 2013 9:54 am

Re: No dmx output in Ma2

Post by bernd »

Those $variable are already set?
Did you took care of the spaces between values and signs.

Did you saw the working macro's in MA-Share-net?

When I'm working with GMA2 i always avoid using scripts or macros.
I never missed the encoders, because i have my presets and i'm working only with them.
If i need a value, i'm normal using my MA-Key (http://quantendrehung.de/cms/artikel/makey/) to entering it.

I own a Fader-Wing - i use the channellink command a lot, to bind PAN/PILT on my 15 Wing-Faders in Channel-Mode.
